ONLINE-SHOP: Trial Bikes

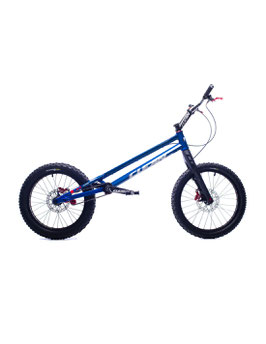

PRO Edition:

Frame: Clean X3

Fork: Clean Carbon Fiber Tapered

Handlebar: Clean Carbon Fiber 103mm total rise. Silver edition

Grips: Clean Foam. Extrathin.

Stem: Clean 145 x 24º PRO

Headset: Clean Tapered. Superlight. Integrated

Hubs: Clean Thru Axle 12mm. 104mm front. 120mm rear

Brakes: Hope Tech3 or Clean + Hope Tech3

Rotors: Clean RS 160mm

Disc protector: Included

Bottom Bracket: Clean 3P Crankset. 30mm axle. Press Fit. Full CNC. 160mm. New adjustment

Pedals: Clean Single Cage.

Chain: KMC X9

Chain tensioner: Clean Integrated. 7075 CNC plate.

Rims: Clean PRO

Spokes: 1,8mm plain gauge

Nipples: Sapim 16g aluminium.

Freewheel: 135.9. 18T. Shimano HG Splined interface.

Sprocket: Clean 12T Splined

Front tyre: Koala 20”

Rear tyre: Koala 19”

Front tube: Clean Light

Rear tube: Clean Light

LIEFERZEIT 3 WOCHEN

WC EDITION:

Wheelbase: 1005mm

BB high: +87mm

Chainstay: 350mm

Head angle: 72º

Reach: 605mm

Hope Tech3 brakes

X9 chain

Carbon Fork

Carbon Handlebar

PRO rims

FRAME

20" Made of high quality 6061-T6, One-piece CNC machined dropouts, Post-mount

PEDALS

Mono-Cage Trial Type, 9/16", Aluminium

BASHPLATE

Ultralight, Bash-Plate Type, High Quality 7075-T6 CNC Machined Aluminum, Post-Mount

FORK

20" High quality 6061-T6 aluminum fork with integrated dropouts, Post-mount disc mount.

STEM

One-piece 3D forged aluminum design with no welds, 130mm x 20º.

SPACER

5mm Steering spacer bushing made of CNC machined aluminum.

HEADSET

Semi-integrated steering 1-1/8", High-quality treated aluminum cups

HANDLEBAR

Made of 6061T6 aluminum, 2 thicknesses, L720mm, 31.8mm, Up 7º, Back 9º, H105mm

GRIPS

Extra-thin, medium density foam grips, 4mm thick.

BRAKES

Hydraulic disc brake Hope Tech3, Postmount system, Aluminum lever, Forged aluminum caliper.

FRONT DISC

Front disc made of high quality stainless steel, exclusive composition and roughness, 160mm

REAR DISC

Rear disc made of high quality stainless steel, exclusive composition and roughness, 160mm

FRONT WHEEL

COMAS WHEEL 20" wheel for disc brake, W100 DEL, W32mm

REAR WHEEL

COMAS WHEEL 19" wheel for disc brake, W116 DEL, W48mm

FRONT TIRE

Tire 20"x2.00  Tire

REAR TIRE

Tire 19"x2.60  Tire

TUBES

Ultra-lightweight high quality inner tube, 20 "x1.75, Thickness: 0.8mm

BB PARTS

ISIS type crankset bottom bracket, Thread 1.37x24t, W68mm, L123mm

CRANKSET

Forged aluminum crankset for ISIS bottom bracket system, L165mm, Off33mm

FREEWHEEL

18T freewheel with 108 engagement points and 9 triggers, Tooth width: 2.2mm, Total width: 17mm

CHAIN

YBN S20 single-speed 1/2 "x3/32" Chain

SPROCKET

CNC machined from 7075 T6 Aluminum, 15T, W12mm, Thread 1.37 "x24T

TENSIONER

CNC machined eccentric type chain tensioner, Toothed profile with 49 positions, W3mm

GEOMETRY

WB920, RC327, HA72º, BB55, OFF40, HT370, W116

FINISH

Orange neon with COMAS stickers in black color

FRAME

20" Made of high quality 6061-T6, One-piece CNC machined dropouts, Post-mount

PEDALS

Cage Trial Type, 9/16", Aluminium

BASHPLATE

Ultralight, Bash-Plate Type, High Quality 7075-T6 CNC Machined Aluminum, Post-Mount

FORK

20" High quality, 1-1/8 Aluminum, Post-mount disc mount.

STEM

One-piece 3D forged aluminum design with no welds, 150mm x 20º.

SPACER

5mm Steering spacer bushing made of CNC machined aluminum.

HEADSET

Semi-integrated steering 1-1/8", High-quality treated aluminum cups

HANDLEBAR

Made of 6061T6 aluminum, 2 thicknesses, L720mm, 31.8mm, Up 7º, Back 9º, H115mm

GRIPS

Extra-thin, medium density foam grips, 4mm thick.

BRAKES

Hope Tech 3 Trial Zone hydraulic disc brake, Postmount system, Aluminum lever, aluminum caliper.

FRONT DISC

Front disc made of high quality stainless steel, exclusive composition and roughness, 160mm

REAR DISC

Rear disc made of high quality stainless steel, exclusive composition and roughness, 160mm

FRONT WHEEL

COMAS WHEEL 20" wheel for disc brake, W100 DEL, W32mm, Rim stickers

REAR WHEEL

COMAS WHEEL 19" wheel for disc brake, W116 DEL, W48mm, Rim Stickers

FRONT TIRE

Tire 20"x2.00  Tire

REAR TIRE

Tire 19"x2.60  Tire

TUBES

Ultra-lightweight high quality inner tube, 20 "x1.75, Thickness: 0.8mm

BB PARTS

ISIS type crankset bottom bracket, Thread 1.37x24t, W68mm, L123mm

CRANKSET

Forged aluminum crankset for ISIS bottom bracket system, L158mm, Off33mm

FREEWHEEL

18T freewheel with 108 engagement points and 9 triggers, Tooth width: 2.2mm, Total width: 17mm

CHAIN

YBN S20 single-speed 1/2 "x3/32" Chain

SPROCKET

CNC machined from 7075 T6 Aluminum, 12T, W12mm, Thread 1.37 "x24T

TENSIONER

CNC machined eccentric type chain tensioner, Toothed profile with 49 positions, W3mm

GEOMETRY

WB1008, RC350, HA72º, BB85, OFF40, HT370, W116

FINISH

Orange neon with COMAS stickers in black color

Frame

- Made of high quality 6061-T6 aluminum with optimized tubes. Ideal for riders up to 1.20m

- Oversized chainstays that give a robust and reliable construction.

- Incorporates bridge of transversal reinforcement in the seatstays.

- High precision CNC machined dropouts designed to use eccentric type tensioners.

Fork

- 18" trial fork for V-brake system with 1-1/8" head tube

- Made of 6061-T6 aluminum with optimized thicknesses to improve resistance.

- Oversized blades that give a robust and reliable construction.

- CNC machined steering tube in one piece to optimize rigidity.

- High precision CNC machined dropouts

- Width of 100mm between dropouts compatible with the most of front hubs on the market.

Wheels

- Front hub: Comas Ultralight 100mm 28 spokes, 9mm threaded axle.

- Rear hub: Comas Ultralight 116mm 32 spokes, 10mm threaded axle, thread 1.37x24T

- Snail cam: Comas eccentric type, 7075-T6, 49 positions

- Front rim: Comas 18 '', 28 holes, Mono-layer, Width 32mm, Lightened

- Rear tire: Comas 18 ", 32 holes, Mono-layer, Special Width 47mm, Lightened

- Spokes: Comas Ultraligth 1.8mm

- Nipples: Aluminum

- Tires: 18"x2.20, symmetrical design, internal security ring

Brakes

- Brakes: L-90mm V-brake sytem, Aluminum, 2 fingers lever

Drivetrain

- Crankset: Comas L130mm, offset 33mm, for threaded freewheel

- Bottom bracket: JIS, CrMo, Sealed bearings, L124.5mm

- Freewheel: Comas 30.6, 16 teeth, red color

- Chain: YBN s20, 1/2x3/32 "

- Sprocket: Comas 12T threaded, 7075-T6, width 12mm

- Pedals: Comas Mono-Cage, Polymer, Thread 9/16 "

Steering

- Headset: Comas 1-1/8", finished in black

- Stem: Comas of 100mm and 25º of inclination

- Grips: comas Extra-thin foam, 2mm thickness

- Handlebar: Comas Aluminum 7075-T6, H105mm, L580mm

Geometry

- WD: 116mm

- BB: 68mm

- HT: 110mm

- FC: 738mm

- RC: 275mm

- BH: + 25mm

- HA: 72º

- OFF: 45mm

Colour

- Black with COMAS graphics in white, black and red.

Hochwertiges Kids Einsteigermodell mit Hydraulikschen Tektro-Scheibenbremsen.

FRAME

20" Made of high quality 6061-T6, One-piece CNC machined dropouts, Post-mount

PEDALS

Mono-Cage Trial Type, 9/16"

BASHPLATE

Ultralight, Bash-Plate Type, High Quality 7075-T6 CNC Machined Aluminum, Post-Mount

FORK

20" High quality 6061-T6 aluminum fork with integrated dropouts, Post-mount disc mount.

STEM

One-piece 3D forged aluminum design with no welds, 130mm x 20º.

SPACER

5mm Steering spacer bushing made of CNC machined aluminum.

HEADSET

Semi-integrated steering 1-1/8", High-quality treated aluminum cups

HANDLEBAR

Made of 6061T6 aluminum, 2 thicknesses, L720mm, 31.8mm, Up 7º, Back 9º, H115mm

GRIPS

Extra-thin, medium density foam grips, 4mm thick.

BRAKES

Hydraulic disc brake with Postmount system, Aluminum lever, Forged aluminum caliper.

FRONT DISC

Front disc made of high quality stainless steel, exclusive composition and roughness, 160mm

REAR DISC

Rear disc made of high quality stainless steel, exclusive composition and roughness, 160mm

FRONT WHEEL

COMAS WHEEL 20" wheel for disc brake, W100 DEL, W32mm

REAR WHEEL

COMAS WHEEL 19" wheel for disc brake, W116 DEL, W48mm

FRONT TIRE

Tire 20"x2.00 Clean Tire

REAR TIRE

Tire 19"x2.60 Clean Tire

TUBES

Ultra-lightweight high quality inner tube, 20 "x1.75, Thickness: 0.8mm

BB PARTS

ISIS type crankset bottom bracket, Thread 1.37x24t, W68mm, L123mm

CRANKSET

Forged aluminum crankset for ISIS bottom bracket system, L165mm, Off33mm

FREEWHEEL

18T freewheel with 108 engagement points and 9 triggers, Tooth width: 2.2mm, Total width: 17mm

CHAIN

YBN S20 single-speed 1/2 "x3/32" Chain

SPROCKET

CNC machined from 7075 T6 Aluminum, 15T, W12mm, Thread 1.37 "x24T

TENSIONER

CNC machined eccentric type chain tensioner, Toothed profile with 49 positions, W3mm

GEOMETRY

WB920, RC327, HA72º, BB55, OFF40, HT370, W116

FINISH

Orange neon with COMAS stickers in black color

Frame

- Made of high quality 6082-T6 aluminum and with tubes of variable thickness throughout its length.

- Top tube with triangular section and down tube with optimized curve to avoid possible collisions.

- The lightened bottom bracket tube is integrated in a single piece mechanized next to the joint reinforcement with the seat tubes.

- Oversized chainstays of rectangular section that give a robust and reliable construction.

- Incorporates bridge of transversal reinforcement in the upper seatstays.

- High precision CNC machined drops designed to use eccentric type tensioners.

Fork

- 20 "trial fork for disc brake with 1-1 / 8" / 1.5 "tapered head tube

- Made of 6082-T6 aluminum with optimized thicknesses to improve resistance.

- Oversized blades that give a robust and reliable construction.

- CNC machined steering tube in one full piece to optimize rigidity.

- High precision CNC machined dropouts.

- Width of 100mm between dropouts compatible with the most of front hubs on the market.

Wheels

- Front hub: Comas Ultralight Disc 100mm 28 spokes, 9mm threaded axle.

- Rear hub: Comas Ultralight Disc 116mm 32 spokes, 10mm threaded axle, thread 1.37x24T

- Snail Cam: Comas eccentric type, AL7075+Steel, 49 positions

- Front Rim: Comas 20 '', 28 holes, W Profile, Width 32mm, Lightened

- Rear tire: Comas 19 ", 32 holes, W Profile, 47mm Width, Lightened

- Radios: Comas Ultraligth 1.8mm

- Spoke nipples: Aluminum

- Front tire: OBR Gekok 20 "x2.00

- Rear tire: OBR Gekok 19 "x2.60

Brakes

- Brakes: Shimano M315, hydraulic, Postmount

- Brake discs: Comas Race 160mm

Drivetrain

- Crankset: Comas Race L160mm, offset 33mm, for threaded sprocket

- Bottom bracket: ISIS, machined in CrMo, aluminum cups, L123mm

- Freewheel: Comas 108.9, 18 teeth, Black color

- Chain: YBN s20, 1/2x3/32”

- Sprocket: Comas 12T threaded, 7075-T6, width 12mm

- Pedals: Resin 9/16"

- Freewheel protector: Comas Ultralight type UCI (Ring)

Steering

- Headset: Comas Semi-integrated Tapered 1-1/8"- 1.5"

- Stem: Comas of 140mm and 20º of inclination

- Grips: Comas Extra-thin foam, 4mm thickness

- Handlebar: Comas Carbon Fiber, H105mm, L720mm

Geometry

- WD: 116mm

- BB:    68mm

- HT:   120mm

- FC:   970mm

- RC:   350mm

- BH: + 85mm

- HA: 72º

- OFF: 40mm

Colour

- Bright Orange with COMAS graphics in black.

*NOTE: Images may not correspond exactly to the components specified.

FRAME

- 20" Made of high quality 6061-T6, One-piece CNC machined dropouts, Post-mount

PEDALS

- Mono-Cage Trial Type, 9/16", Plastic

BASHPLATE

- Ultralight, Bash-Plate Type, High Quality 7075-T6 CNC Machined Aluminum, Post-Mount

FORK

- 20" High quality 6061-T6 aluminum fork with integrated dropouts, Post-mount disc mount.

STEM

- One-piece 3D forged aluminum design with no welds, 150mm x 20º.

SPACER

- 5mm Steering spacer bushing made of CNC machined aluminum.

HEADSET

- Semi-integrated steering 1-1/8", High-quality treated aluminum cups

HANDLEBAR

- Made of 6061T6 aluminum, 2 thicknesses, L720mm, 31.8mm, Up 7º, Back 9º, H115mm

GRIPS

- Extra-thin, medium density foam grips, 4mm thick.

BRAKES

- Tektro hydraulic disc brake with Postmount system, Aluminum lever, Forged aluminum caliper.

FRONT DISC

- Front disc made of high quality stainless steel, exclusive composition and roughness, 160mm

REAR DISC

- Rear disc made of high quality stainless steel, exclusive composition and roughness, 160mm

FRONT WHEEL

- COMAS WHEEL 20" wheel for disc brake, W100 DEL, W32mm

REAR WHEEL

- COMAS WHEEL 19" wheel for disc brake, W116 DEL, W48mm

FRONT TIRE

- Tire 20"x2.00 ProRace Tire

REAR TIRE

- Tire 19"x2.60 ProRace Tire

TUBES

- Ultra-lightweight high quality inner tube, 20 "x1.75, Thickness: 0.8mm

BB PARTS

- ISIS type crankset bottom bracket, Thread 1.37x24t, W68mm, L123mm

CRANKSET

- Forged aluminum crankset for ISIS bottom bracket system, L158mm, Off33mm

FREEWHEEL

- 18T freewheel with 108 engagement points and 9 triggers, Tooth width: 2.2mm, Total width: 17mm

CHAIN

- YBN S20 single-speed 1/2 "x3/32" Chain

SPROCKET

- CNC machined from 7075 T6 Aluminum, 12T, W12mm, Thread 1.37 "x24T

TENSIONER

- CNC machined eccentric type chain tensioner, Toothed profile with 49 positions, W3mm

GEOMETRY

- WB1008, RC350, HA72º, BB85, OFF40, HT370, W116

FINISH

-Orange neon with COMAS stickers in black color

Custombike mit Spezialteilen wie Comas Carbonlenker, Lizardskins Danny Macaskill Schraubgriffe, Vorbau Comas 150mmx32°, Extra starke Kette KMC e1 EPT Silver, Titan Käfigpedale Comas uvm.

FRAME

20" Made of high quality 6061-T6, One-piece CNC machined dropouts, Post-mount

PEDALS

Cage Trial Type, 9/16", Aluminium with Titanaxle

BASHPLATE

Ultralight, Bash-Plate Type, High Quality 7075-T6 CNC Machined Aluminum, Post-Mount

FORK

20" High quality, Tapered 1-1/8 to 1,5 Aluminum, Post-mount disc mount.

STEM

One-piece 3D forged aluminum design with no welds, 150mm x 32º.

SPACER

5mm Steering spacer bushing made of CNC machined aluminum

HEADSET

Semi-integrated steering 1-1/8", High-quality treated aluminum cups

HANDLEBAR

Carbon fiber L720mm, 31.8mm, Up 8º, Back 6º, Rise 105mm

GRIPS

Lizardskins Danny Macaskill Lock-on Grips black

BRAKES

Hope Tech 3 Trial Zone hydraulic disc brake, Postmount system, Aluminum lever, aluminum caliper.

FRONT DISC

Front disc made of high quality stainless steel, exclusive composition and roughness, 160mm

REAR DISC

Rear disc made of high quality stainless steel, exclusive composition and roughness, 160mm

FRONT WHEEL

COMAS WHEEL 20" wheel for disc brake, W100 DEL, W32mm, Rim stickers

REAR WHEEL

COMAS WHEEL 19" wheel for disc brake, W116 DEL, W48mm, Rim Stickers

FRONT TIRE

Tire 20"x2.00  Tire Clean

REAR TIRE

Tire 19"x2.60  Tire Clean

TUBES

Ultra-lightweight high quality inner tube, 20 "x1.75, Thickness: 0.8mm

BB PARTS

ISIS type crankset bottom bracket, Thread 1.37x24t, W68mm, L123mm

CRANKSET

Forged aluminum crankset for ISIS bottom bracket system, L158mm, Off33mm

FREEWHEEL

18T freewheel with 108 engagement points and 9 triggers, Tooth width: 2.2mm, Total width: 17mm

CHAIN

KMC e1 EPT Silver, extra strong

SPROCKET

CNC machined from 7075 T6 Aluminum, 12T, W12mm, Thread 1.37 "x24T

TENSIONER

CNC machined eccentric type chain tensioner, Toothed profile with 49 positions, W3mm

GEOMETRY

WB1008, RC350, HA72º, BB85, OFF40, HT370, W116

FINISH

Orange neon with COMAS stickers in black color

FRAME

- 20" Made of high quality 6061-T6, One-piece CNC machined dropouts, Post-mount

PEDALS

- Mono-Cage Trial Type, 9/16", Plastic

BASHPLATE

- Ultralight, Bash-Plate Type, High Quality 7075-T6 CNC Machined Aluminum, Post-Mount

FORK

- 20" High quality 6061-T6 aluminum fork with integrated dropouts, Post-mount disc mount.

STEM

- One-piece 3D forged aluminum design with no welds, 150mm x 20º.

SPACER

- 5mm Steering spacer bushing made of CNC machined aluminum.

HEADSET

- Semi-integrated steering 1-1/8", High-quality treated aluminum cups

HANDLEBAR

- Made of 6061T6 aluminum, 2 thicknesses, L720mm, 31.8mm, Up 7º, Back 9º, H115mm

GRIPS

- Extra-thin, medium density foam grips, 4mm thick.

BRAKES

- Tektro hydraulic disc brake with Postmount system, Aluminum lever, Forged aluminum caliper.

FRONT DISC

- Front disc made of high quality stainless steel, exclusive composition and roughness, 160mm

REAR DISC

- Rear disc made of high quality stainless steel, exclusive composition and roughness, 160mm

FRONT WHEEL

- COMAS WHEEL 20" wheel for disc brake, W100 DEL, W32mm

REAR WHEEL

- COMAS WHEEL 19" wheel for disc brake, W116 DEL, W48mm

FRONT TIRE

- Tire 20"x2.00 ProRace Tire

REAR TIRE

- Tire 19"x2.60 ProRace Tire

TUBES

- Ultra-lightweight high quality inner tube, 20 "x1.75, Thickness: 0.8mm

BB PARTS

- ISIS type crankset bottom bracket, Thread 1.37x24t, W68mm, L123mm

CRANKSET

- Forged aluminum crankset for ISIS bottom bracket system, L158mm, Off33mm

FREEWHEEL

- 18T freewheel with 108 engagement points and 9 triggers, Tooth width: 2.2mm, Total width: 17mm

CHAIN

- YBN S20 single-speed 1/2 "x3/32" Chain

SPROCKET

- CNC machined from 7075 T6 Aluminum, 12T, W12mm, Thread 1.37 "x24T

TENSIONER

- CNC machined eccentric type chain tensioner, Toothed profile with 49 positions, W3mm

GEOMETRY

- WB970, RC350, HA72º, BB85, OFF40, HT370, W116

FINISH

-Orange neon with COMAS stickers in black color
